In the intricate operational mechanics of precision injection molds, reset rods play a pivotal role, primarily functioning to precisely guide the reset of the ejector plate. Let's delve into the specific applications and significance of reset rods in molds of varying sizes.

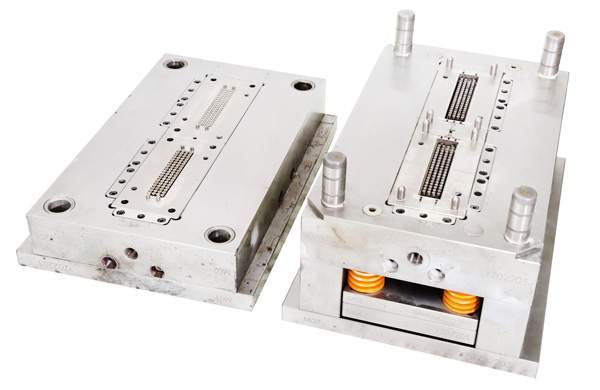

In the design of relatively compact small injection molds, a clever reset system is formed by the combination of reset rods and springs. Here, springs are skillfully sleeved onto the reset rods, creating a simple yet practical reset mechanism. After the ejector completes its task of pushing out the product, the spring, relying on its inherent elastic force, swiftly and accurately pulls the ejector back to its starting position, ensuring efficient continuous operation of the mold. This design not only simplifies the mold structure but also significantly enhances production efficiency.
As mold sizes increase, so does the demand for reset force. In medium to large injection molds, relying solely on the elastic force of springs is no longer sufficient to achieve proper ejector plate reset. At this point, the role of reset rods becomes particularly crucial. When the mold is closed, the fixed mold plate precisely acts on the reset rods, transmitting sufficient force through physical contact to push the ejector plate reliably back to its preset position, thereby achieving accurate reset. This process not only ensures mold precision but also effectively avoids production errors caused by inaccurate reset, serving as the cornerstone for maintaining product quality and long-term stable mold operation.
In summary, reset rods not only bear the basic responsibility of guiding the ejector plate reset in precision injection molds but also demonstrate their indispensable value in ensuring production efficiency and enhancing product quality through their flexible application in molds of different sizes. A deep understanding of the working principles of reset rods and their application strategies in various scenarios is of great significance for optimizing mold design and improving injection molding process levels.
