The insert is used in the mold to inlay the space between the fixed template and the filling template
The standard precision of the Precision Connector Mould insert is ±0.01mm, while the precision of inserts made by Yize mold can reach less than ±0.01mm. Continuing the previous article, we shared some specific details about the Precision Connector Mould front mold. Continue to analyze the details of the Precision Connector Mould insert.
The head of all inserts must not be treaded or missing corners. Note that the cumulative tolerance is +0/+0.005
The red area and the back mold inserts and row inserts are inserted/broken, the size requirements are high, the column width is processed according to +0/-0.005, the groove width is processed according to +0/0.005, and the corner area requires a clear angle Rmax0.03;
The yellow area is the exhaust groove, the depth is 0.005~0.015mm, the exhaust depth is different for different product materials;
The green area is the air-entraining groove, and the machining accuracy is not high.
The processing points are the same as those of the front mold insert, the red surface is to insert/lean against the front mold insert.
The head of all inserts must not be treaded or missing corners. Note that the cumulative tolerance is +0/+0.005
The surface of the gate should be thin and smooth without carbon deposits
All inserts are chamfered at the bottom for easy exhaust

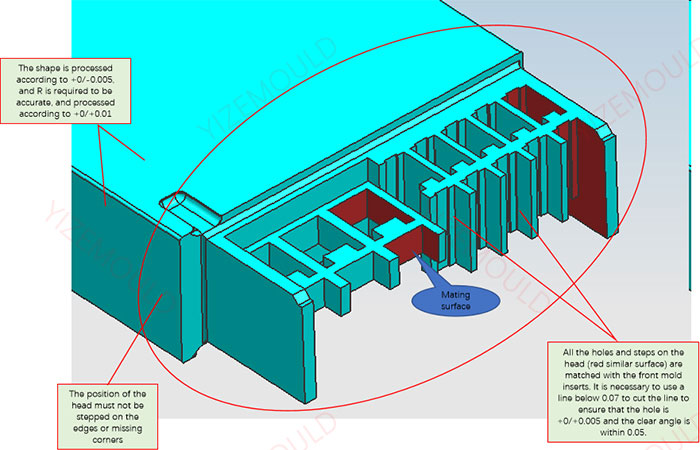

All the holes and steps on the head (red similar surface) are matched with the front mold inserts. It is necessary to use a line below 0.07 to cut the line to ensure that the hole is +0/+0.005 and the clear angle is within 0.05.
For Precision Connector Mould insert. Yize Mould has more than 15 years of production and development experience. Whether it is ordinary shape connector mold inserts, such as square, round, sheet-shaped, or special-shaped connector mold inserts, Yize Mold can take on and challenge!
